Product Details

INCLUDES:
o (1) Side Handle (451749-9)
o (1) Depth Gauge (331886-4)
o (1) Tool Case (824695-3)

FEATURES:
o Powerful 7 AMP motor delivers 2.1 ft.lbs. of impact energy to handle the most demanding applications
o Anti-Vibration Technology (AVT(R)) is an internal counterbalance system that greatly reduces vibration by moving a counterweight in the opposite direction of drive piston
o Integrated damper spring at the base of the impact bolt is engineered to absorb impact vibrations from the drill bit
o Torque limiting clutch engineered to prevent gear damage by automatically disengaging gears if the bit binds
o L.E.D. light illuminates drilling surface for more productivity in low light applications
o Recessed hammer function selector located below gear housing for improved durability
o Variable speed trigger enables user to match the speed to the application for greater versatility
o 3-mode operation for various applications with "Rotation Only", "Hammering with Rotation" or "Chipping Only" functions
o 40 bit angle settings allow the bit to be set at different positions for operating convenience
o Ergonomic "Pistol-grip" handle with rubberized soft grip for increased comfort
o "No hammering when idling" function helps increase tool life
o Designed to reduce dust exposure in drilling applications with dust extraction accessory (part no.195173-3)

SPECIFICATIONS:
o Amps: 7
o Capacity (Concrete Drilling): 1"
o Capacity (Concrete Drilling w/ Core Bit): 2-11/16"
o Impact Energy (Joules): 2.9 J
o Impact Energy (ft. lbs): 2.1
o Vibrations (m/s2): 11.5
o Blows Per Minute (Variable Speed): 0 - 4,600 BPM
o No Load Speed (Variable Speed): 0 - 1,200 RPM
o Overall Length: 15-1/8"
o Cord Length (ft): 13.1'
o Bit Type: Accepts SDS-Plus
o Sound Rating (Decibels): 90 dB (A)

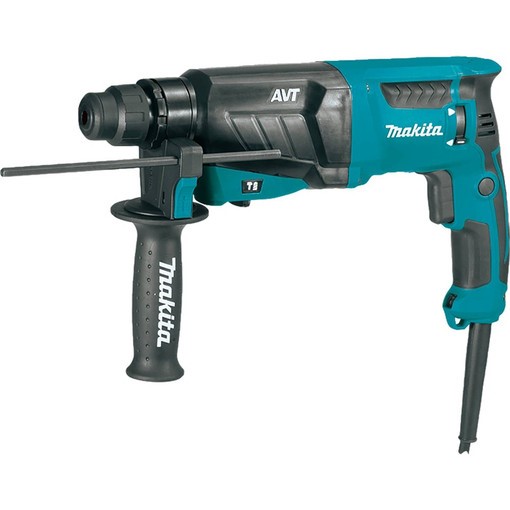

The Makita 1 in. AVT rotary hammer (model HR2611F, with pistol-grip) is engineered with anti-vibration technology (AVT(R)), an internal counterbalance system for significantly less vibration. The HR2611F combines performance and power with less vibration in a compact size, and is ideal for a range of applications including overhead drilling. The HR2611F has a 7 AMP motor that delivers 2.9 joules (2.1 ft. lbs.) of impact energy to handle the most demanding applications. The 3-mode operation offers rotation only, hammering with rotation or chipping only for multiple applications. Modes can be easily changed with a recessed hammer-function selector, which is located below the gear housing for improved durability. The LED light at the base of the tool's pistol grip illuminates the work surface in low-light conditions. The HR2611F is engineered for a range of applications including overhead drilling into concrete, wood and metal, removing tile, and more. It is ideal for a range of trades including masons, plumbers, electricians, sprinkler installers, city maintenance crews, and general contractors seeking a best-in-class 1 in. rotary hammer.
