Product Details

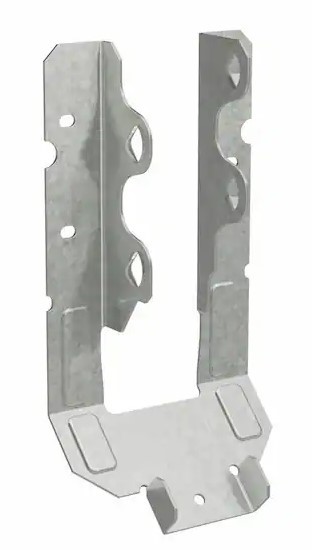

The LRUZ offers an economic alternative for those applications requiring a sloped hanger for rafter-to-ridge connections. Used with solid sawn rafters, the LRUZ's unique design enables the hanger to be installed either before or after the rafter is in place. The field-adjustable seat helps improve job efficiency by eliminating mismatched angles in the field and lead times associated with special orders. The LRUZ offers comparable or better load capacity to other rafter hangers at a reduced cost while using fewer fasteners.

The open design and ability to field-adjust the slope make the LRUZ ideal for both retrofit or new applications
Accommodates roof pitches from 0:12 to 14:12
Slopes up or down to 45-degrees (12:12) - for slopes greater than 45-degrees up to 49-degrees (14:12), allowable loads are 0.85 of table
loads
For added versatility, the fasteners on the face of the hanger are placed high enabling the bottom of the rafter to hang below the ridge beam
For nominal rafter sizes: 2x6, 2x8
Seat width: 1-9/16 in.
Made from 18-Gauge steel
ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications
Install with 0.148 in. x 3 in. nails, 0.162 in. x 3-1/2 in. nails or #10 x 1-1/2 in. or 2-1/2 in. Strong-Drive SD screws
