Product Details

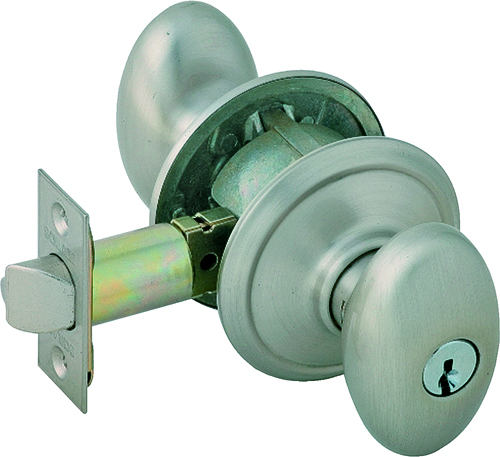

For residential single and multi-family entrance doors. Unlocked by key from outside when outer knob is locked by turn button in inside knob. Door thickness 1-3/8 to 1-3/4 in. Cylinder 5-pin C keyway, 2 nickel silver cut keys per lock. Latch of 1 in x 2-1/4 in Radius corner faceplate, 7/8 in housing diameter, 1/2 in throw, with Triple-Option square corner and circular corner faceplate. Strikes of Dual strikes, 1-5/8 in x 2-1/4 in, radius corner and square corner, full lip, no box. Backset of dual backset latches, fits either 2-3/8 in or 2-3/4 in backsets. ANSI/BHMA ANSI 156.2, Series 4000, Grade 2. Secure Key.

Specifications
