Product Details

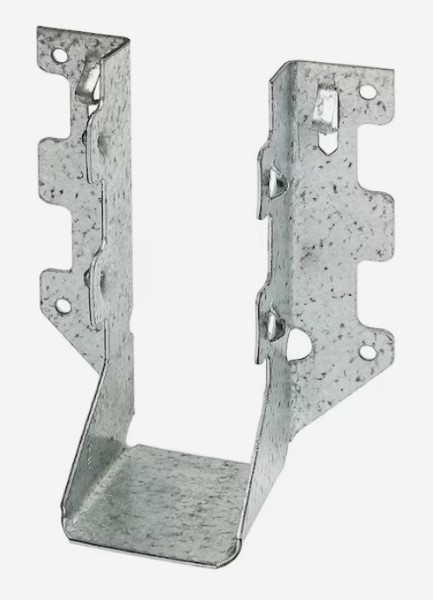

Joist hangers are designed to provide support underneath the joist, rafter or beam to provide a strong a connection. Simpson Strong-Tie offers a diverse line of hangers to handle almost any application with top flange, concealed flange and field-skewable and slopeable options. LUS joist hangers provide a connection between a joist and header.

Patented double-shear nailing design provides greater strength with fewer nails

Speed prongs for fast and easy installation

Angled joist nailing easier in tight spaces

Do not bend or remove tabs

Nominal joist size: 2x6 and 2x8

Made from 18-gauge steel

ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications

Install with 10d common nails or #9 x 2-1/2-in Strong-Drive SD screws

Specifications
