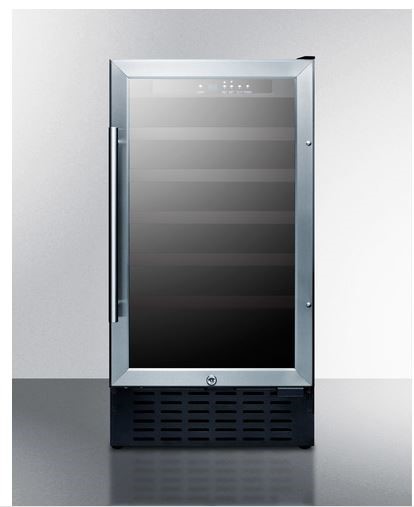

UNDERCOUNTER WINE CELLAR 34B 18"

SUMMIT's collection of built-in undercounter wine cellars offers quality storage with user-friendly convenience and elegant style.

Sized just under 18" wide, the SWC1840B is front-breathing for built-in installation under counters, while the fully finished black cabinet also allows freestanding use. The reversible glass door features an elegant stainless steel trim and professional handle, with a factory installed lock for added security.

Inside, this auto defrost wine cellar can store up to 34 Bordeaux or Burgundy style bottles, with a slotted floor that can also accommodate champagne if needed. The slide-out wooden shelves come in a jet black finish for a modern look. Recessed LED lighting offers an elegant view of the items, while the digital thermostat ensures easy temperature management.

With its slim fit and convenient design, the SWC1840B makes an attractive addition to any room.


SPECIFICATIONS
Overview
Height of Cabinet 34.25" (87 cm)
Width 17.75" (45 cm)
Depth 23.5" (60 cm)
Depth with door at 90? 39.75" (101 cm)
Capacity 3.3 cu.ft. (93 L)
Bottles 34 bottles
Defrost Type Automatic
Door Glass
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Amps 1.25
Voltage/Frequency 115 V AC/60 Hz
Weight 95.0 lbs. (43 kg)
Shipping Weight 98.0 lbs. (44 kg)

UPC 761101055725
Wine Cellar
Number of Zones 1
Door Swing RHD
Reversible Yes
Shelf Type Wood
Shelf Qty 5
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 1.06 oz.
High Side PSI 150.0
Low Side PSI 50.0
Level Legs 4
Temperature Range 41? to 68?F
AVAILABLE UPGRADES
Exterior
SSK - Stainless steel kickplate Extra key
LHD - Left hand door swing Latch - Factory-installed door latch requires manual release to open unit
Door
T4 Door Tint T3 Door Tint
T2 Door Tint T1S Door Tint
T1 Door Tint
FEATURES
34 bottle capacity

Versatile interior can store up to 34 standard 750ml Bordeaux style or wider Burgundy style bottles
Built-in capable

Make the best use of space by installing your appliance under the counter Commercially approved

ETL-S listed to ANSI-NSF Standard 7 for use in commercial establishments Glass door with stainless steel trim

Provides a full display of stored contents with a heat-safe double tempered design
Factory installed lock

Keyed security on the door
Digital thermostat

Electronic controls for precise temperature management.
Digital display

Temperature readout can be shown in Celsius or Fahrenheit
LED lighting

Gentle illumination with an on/off switch
Wooden shelves

5 shelves offer the perfect storage for wine bottles in a classic wooden finish
Automatic defrost
Reduced maintenance with the convenience of auto defrost
Reversible door

Keep your options flexible with a reversible door that is easy to switch when your arrangement changes
Professional handle

Stainless steel look for added elegance
Fully finished black cabinet

Allows the unit to be used freestanding
100% CFC Free

Environmentally friendly design with no ozone-damaging chemicals
CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
